Charging And Starting System: Wiring diagram: Starting: Notes

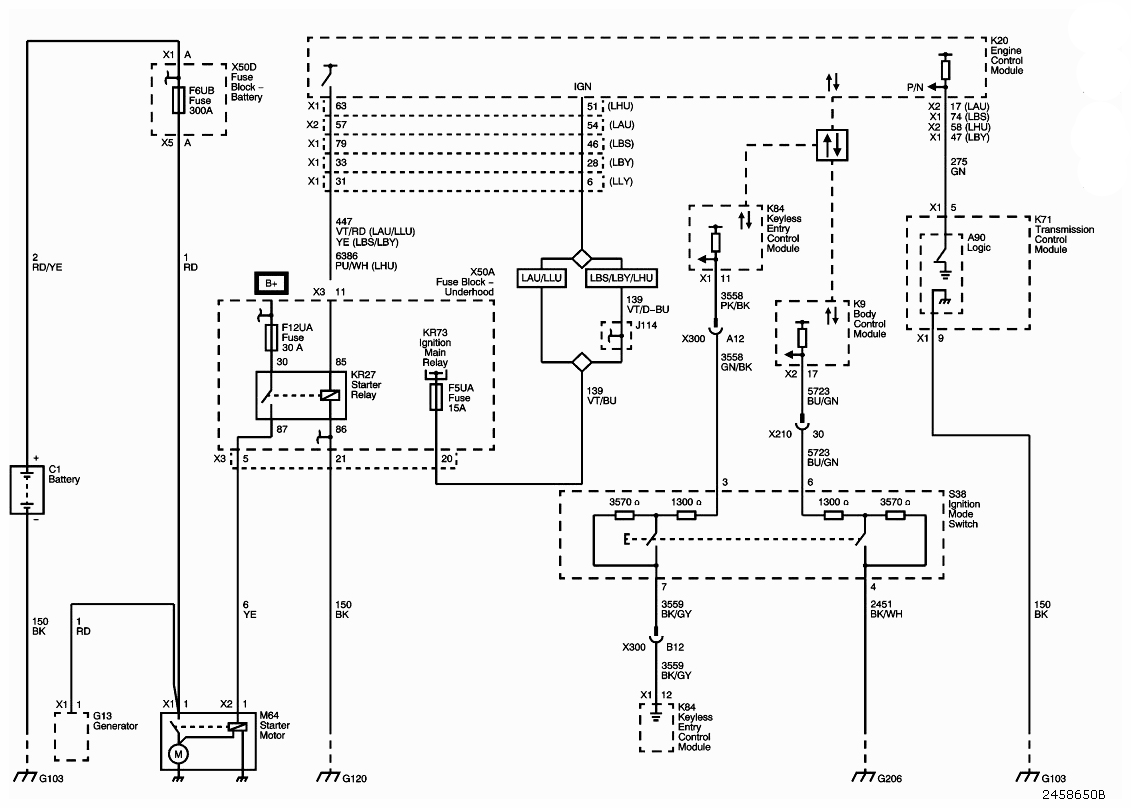

Fig 1: Starting - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
