Headlamp Bracket Replacement

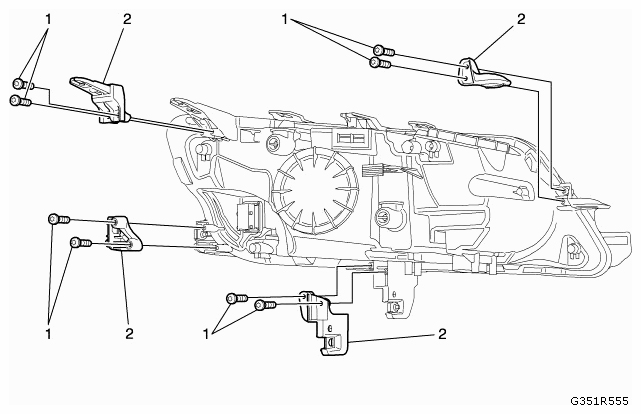

Fig 1: Identifying Headlamp Bracket And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the headlamp. See HEADLAMP REPLACEMENT
1	Headlamp Bracket Fastener (Qty: 8) Refer to FASTENER CAUTION .
2	Headlamp Bracket NOTE: There are 4 replacement brackets on each headlamp. Procedure  Use the replacement bracket as a template and mark were to cut off the old bracket. Cut off old bracket along the marked line.
