Instrument Panel Lamp Dimmer Switch Replacement

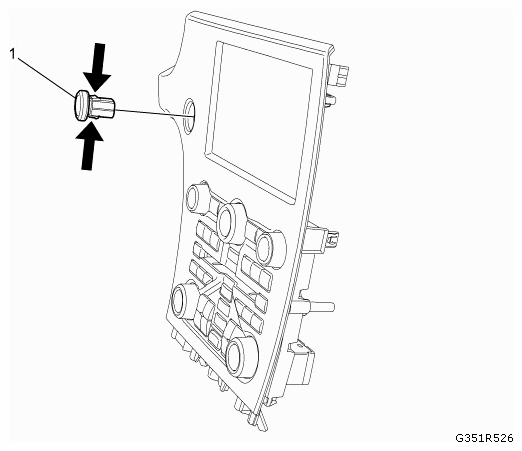

Fig 1: Locating Instrument Panel Lamp Dimmer Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the instrument panel lower center trim panel. Refer to INSTRUMENT PANEL LOWER CENTER TRIM PANEL REPLACEMENT .
1	Instrument Panel Lamp Dimmer Switch Procedure  Disconnect the electrical connector. Press in the locking tabs.
