Rear Fog Lamp Replacement

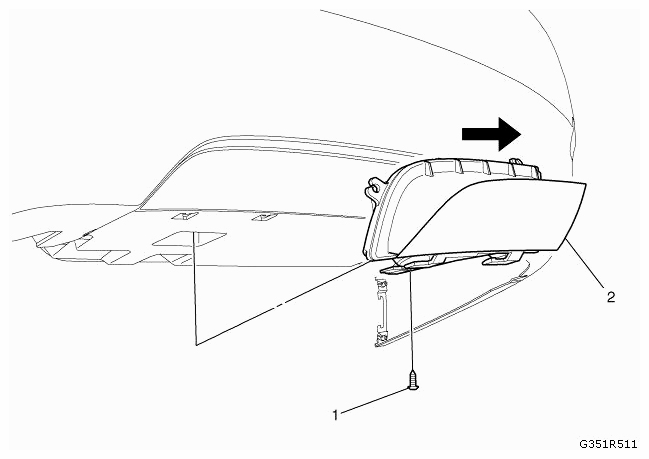

Fig 1: Pulling Rear Fog Lamp Toward Center Of Car

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Remove the rear bumper fascia reflector. Refer to REAR BUMPER FASCIA REFLECTOR REPLACEMENT Remove the rear fog lamp bulb. Refer to REAR FOG LAMP BULB REPLACEMENT .
1	Rear Fog Lamp fastener Refer to FASTENER CAUTION .
2	Rear Fog Lamp Procedure Pull the rear fog lamp towards the center of the car for release.
