Lighting And Signaling Systems: Wiring diagram: Indicators: Notes

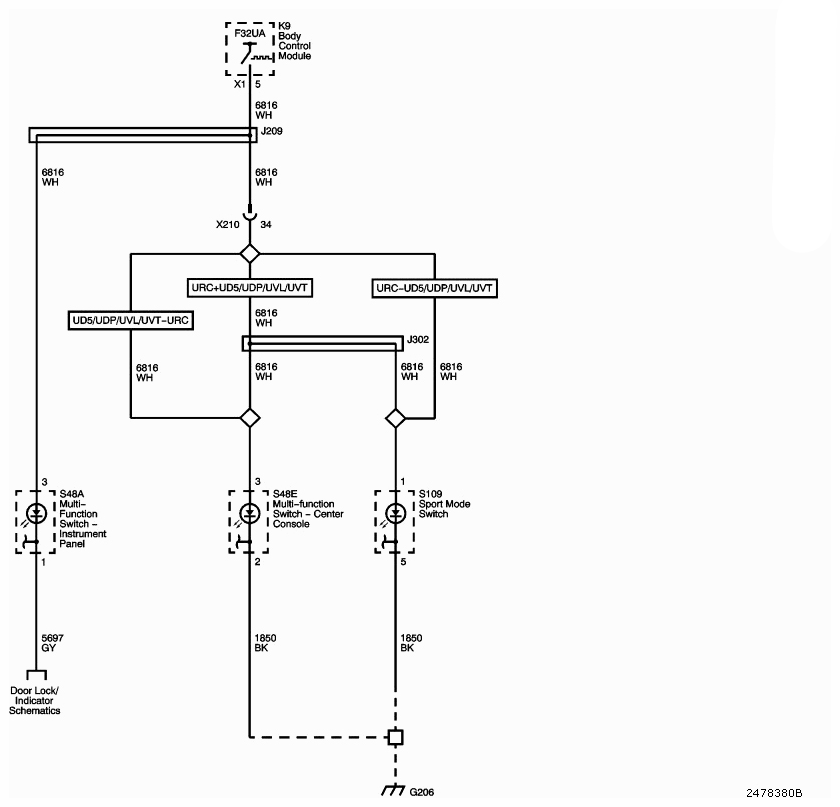

Fig 1: Indicators - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
