Installation Procedure

With the aid of an assistant, install the exhaust system to the vehicle.
Install the exhaust muffler (1) to the bracket in 5 places (2).

Fig 1: Identifying Exhaust Muffler And Bracket
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the exhaust manifold front pipe to the bracket.
Refer to FASTENER CAUTION .

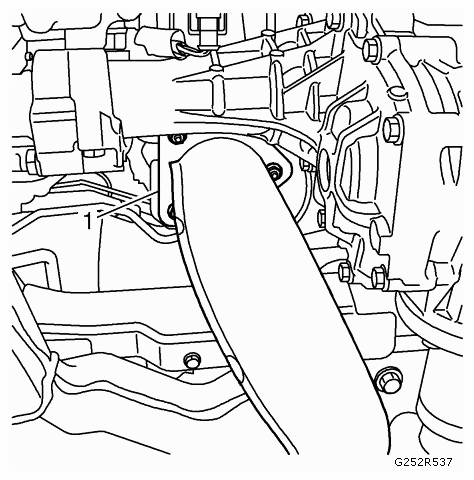

Install the front exhaust pipe fastener (1) to the catalytic converter and tighten to 20 Nm (15 lb ft) .

Fig 2: Identifying Catalytic Converter And Front Exhaust Pipe Fastener
Courtesy of SAAB-SCANIA OF AMERICA, INC.

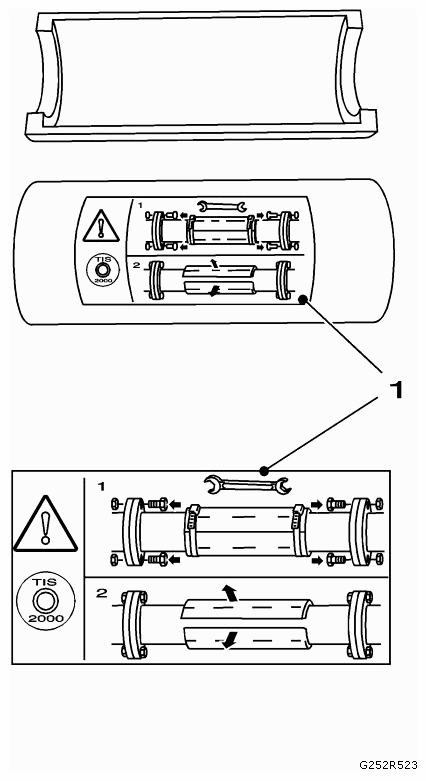

Remove the shipping fastening (1) from the flex pipe.

Fig 3: Identifying Flex Pipe Shipping Fastening
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Vehicles equipped with all wheel drive install the propeller shaft. Refer to PROPELLER SHAFT REPLACEMENT .
Lower the vehicle.
