Installation Procedure

With the aid of an assistant, install the exhaust system to the vehicle.
Install the exhaust system (1) to the bracket in 5 places (2).

Fig 1: Identifying Exhaust System And Bracket
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the exhaust front pipe to the bracket.
Install the front pipe to the catalytic converter.
Install the fastener (1) of the exhaust front pipe to the catalytic converter.

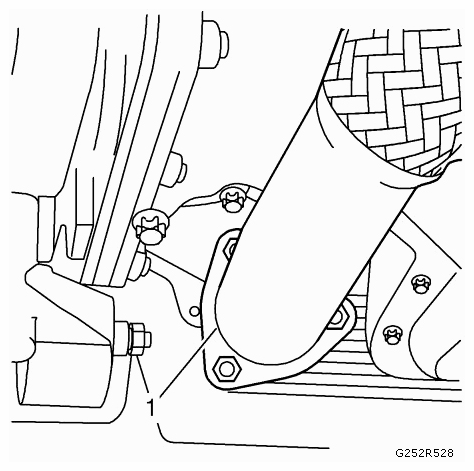

Fig 2: Identifying Exhaust Front Pipe Fastener
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the shipping fastening (1) from the flex pipe.

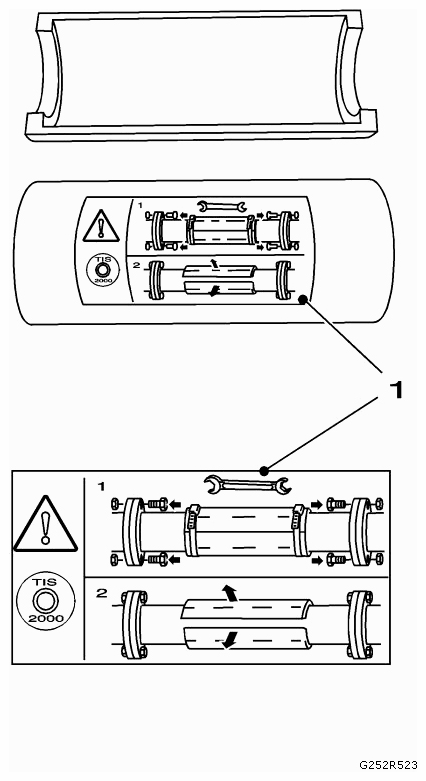

Fig 3: Identifying Flex Pipe Shipping Fastening
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Lower the vehicle.
