Automatic Transmission Flex Plate Installation

Special Tools

• EN 46106  Flywheel Holding Tool
• EN 45059  Torque Angle Sensor Kit

1. Install the automatic transmission flex plate (2).

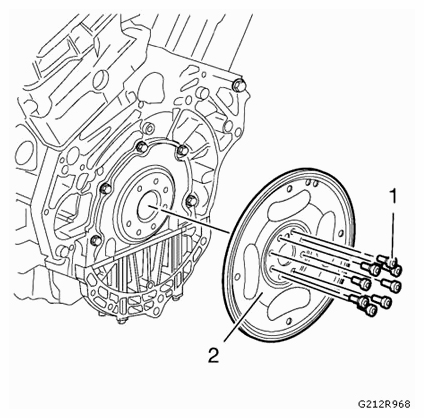

   Fig 1: Identifying Automatic Transmission Flex Plate And Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Loosely install the NEW 8 automatic transmission flex plate bolts (1).
3. Install the EN 46106  holder.

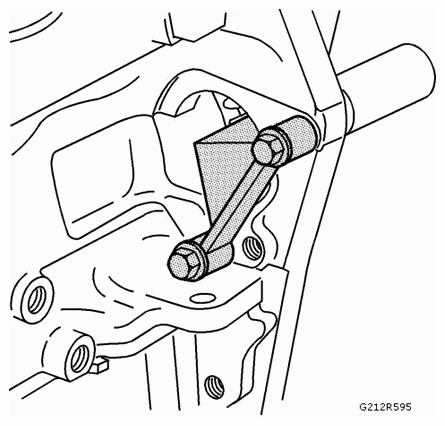

   Fig 2: Identifying Tool (EN 46106)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Tighten the 8 automatic transmission flex plate bolts (1) to 30 Nm (22 lb ft)  .

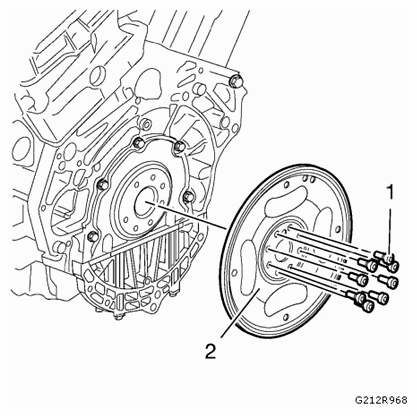

   Fig 3: Identifying Automatic Transmission Flex Plate Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
5. Tighten the NEW 8 automatic transmission flex plate bolts an additional 45 degrees  using the EN 45059  kit.
6. Remove the EN 46106  holder.

Fig 4: Identifying Tool (EN 46106)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
