Engine Flywheel Removal

Special Tools

EN 46106 Flywheel Holding Tool

1. Install the EN 46106 through the starter mounting hole.

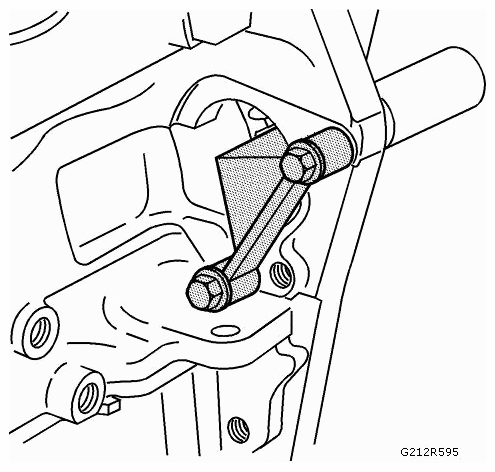

   Fig 1: Identifying Tool (EN 46106)

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the engine flywheel bolts and discard.

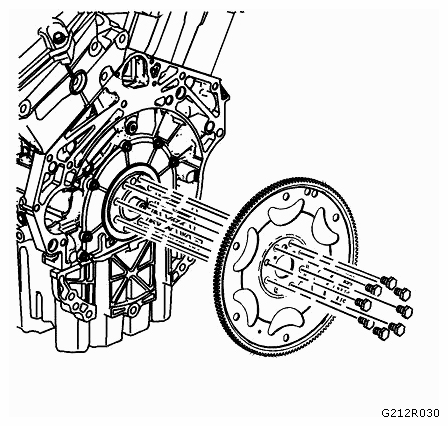

   Fig 2: Identifying Engine Flywheel And Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the engine flywheel from the crankshaft.
4. Remove the EN 46106.

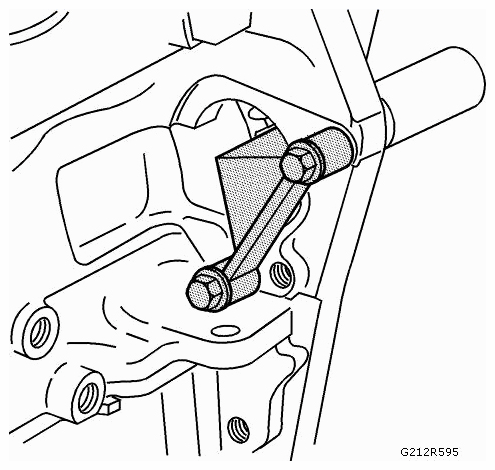

Fig 3: Identifying Tool (EN 46106)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
