Engine Front Cover Disassemble

Special Tools

EN 45000  Seal Remover

1. Remove the crankshaft front oil seal from the engine front cover using the EN 45000  remover.

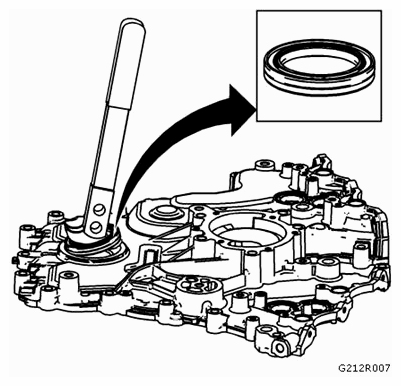

   Fig 1: Removing Crankshaft Front Oil Seal From Engine Front Cover Using Tool

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Remove the camshaft position actuator valve oil seals from the engine front cover.

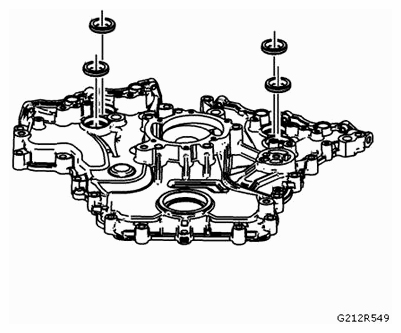

   Fig 2: Identifying Camshaft Position Actuator Valve Oil Seals

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Remove the water pump seal from the engine front cover.

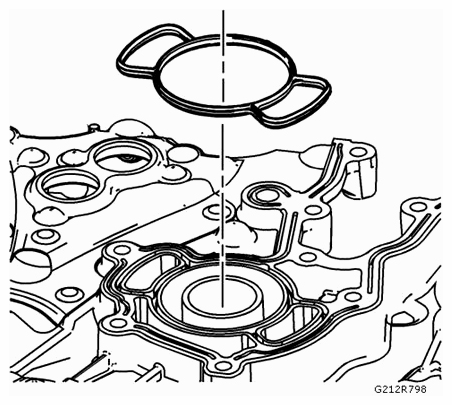

   Fig 3: Identifying Water Pump Seal

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Discard the water pump seal.
