Engine Mount Bracket Replacement - Right Side

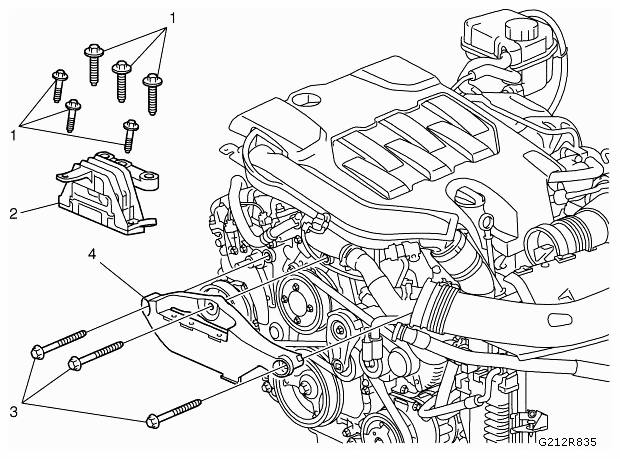

Fig 1: Identifying Engine Mount Bracket And Fasteners

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the air cleaner assembly. Refer to AIR CLEANER ASSEMBLY REPLACEMENT . Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE . Support the engine using the CH-49290 centering adapter.
Special Tools
CH 49290  Centering Adapter Engine Subframe
1	Engine Mount Fastener (Qty: 6) Refer to FASTENER CAUTION . Tighten  65 Nm (48 lb ft)
2	Engine Mount
3	Engine Mount Fastener (Qty: 3) Tighten  100 Nm (74 lb ft)
4	Engine Mount
