Engine Support Fixture (Rear Left Side)

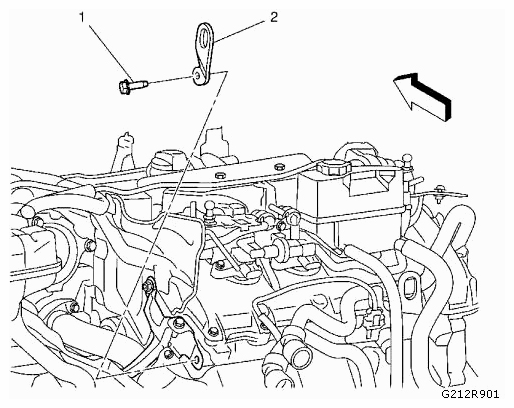

Fig 1: Identifying Engine Support Fixture And Fastener (Rear Left Side)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure
Remove the catalytic converter. Refer to CATALYTIC CONVERTER REPLACEMENT (LAU/A28NER) .
1	Engine Support Fixture (Rear Left Side) Fastener Refer to FASTENER CAUTION . Tighten  65 Nm (48 lb ft)
2	Engine Support Fixture (Rear Left Side)
