Oil Pan Installation

1. Refer to FASTENER CAUTION .

   Install the oil sump drain plug (1) and NEW O-ring (2) and tighten to 25 Nm (18 lb ft)  .

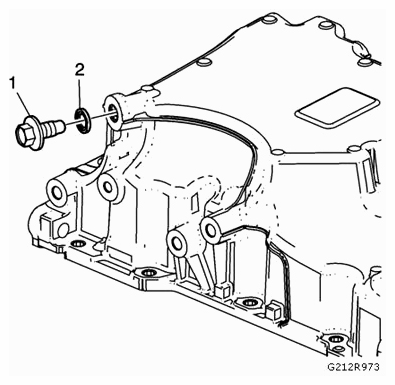

   Fig 1: Identifying Oil Sump Drain Plug And O-Ring

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Install the NEW oil suction pipe O-ring (1).

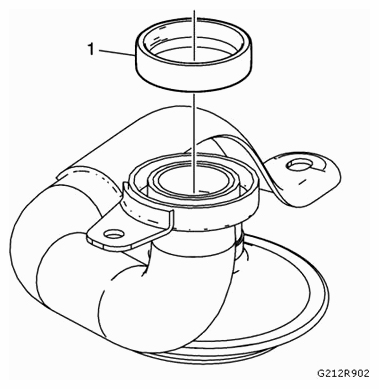

   Fig 2: Identifying Oil Suction Pipe O-Ring

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Install the oil suction pipe (2).

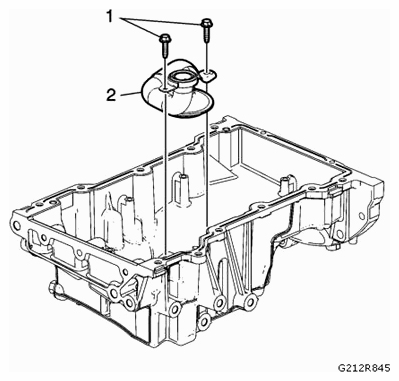

   Fig 3: Identifying Oil Suction Pipe And Mounting Bolt

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Install the oil suction pipe bolts (1) and tighten to 10 Nm (89 lb in)  .
5. Install the oil pan scraper (2).

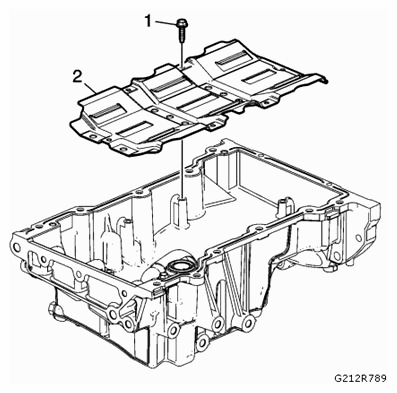

   Fig 4: Identifying Oil Pan Scraper And Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Install the oil sump scraper plate bolts (1) and tighten to 10 Nm (89 lb in)  .

1. Place a 3 mm (0.118 in) bead of RTV sealant on the block pan rail and the crankshaft rear oil seal housing (1). Refer to ADHESIVES, FLUIDS, LUBRICANTS, AND SEALERS  for the recommended sealant.

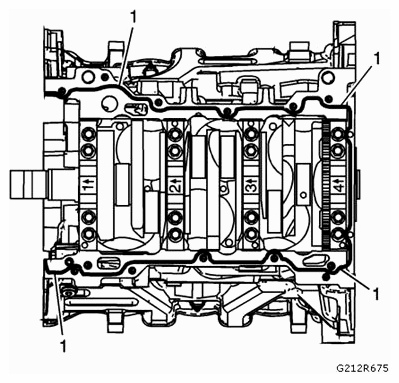

   Fig 1: Identifying Sealant Applying Area On Crankshaft Rear Oil Seal Housing

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Position the oil pan (1) onto the block.

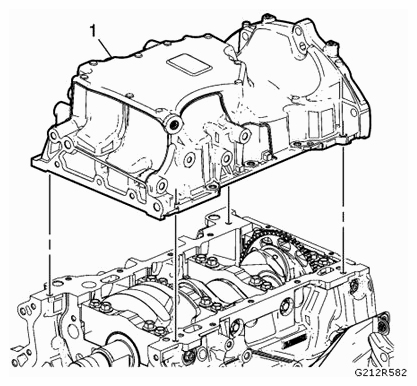

   Fig 2: Identifying Oil Pan

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
3. Loosely install the oil pan bolts (1) and (2).

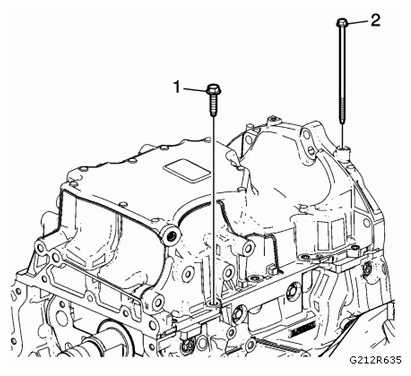

   Fig 3: Identifying Oil Pan Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
4. Refer to FASTENER CAUTION .

Tighten the oil pan bolts in sequence shown.

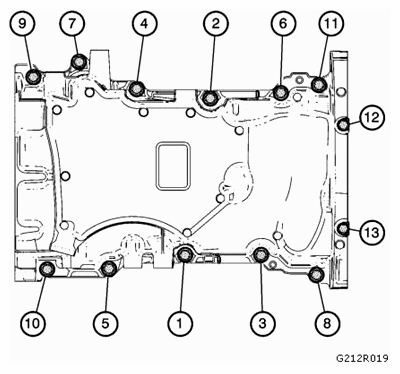

Fig 4: Identifying Oil Pan Mounting Bolts Tightening Sequence

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. 4.1. Tighten the 8-mm bolts (1-11) to 25 Nm (18 lb ft).
2. 4.2. Tighten the 6-mm bolts (12, 13) to 10 Nm (89 lb ft).
