Primary Timing Chain Guide Removal - Lower

  1. Remove the primary camshaft drive chain lower guide bolts.

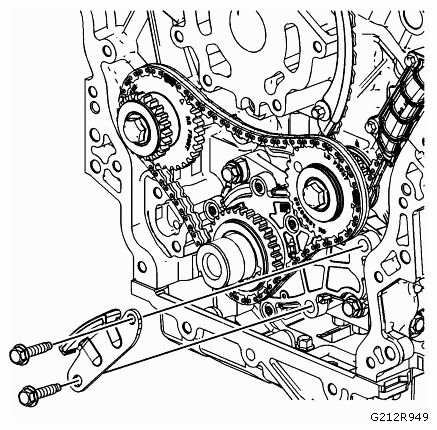

    Fig 1: Identifying Primary Camshaft Drive Chain Lower Guides And Mounting Bolts
    G09438614Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the primary camshaft drive chain lower guide.
