Removal Procedure

  1. Remove the engine front cover. Refer to ENGINE FRONT COVER REPLACEMENT .
  2. Remove the secondary timing chain tensioner - bank 1. Refer to SECONDARY TIMING CHAIN TENSIONER REMOVAL - RIGHT SIDE .
  3. Remove the secondary timing chain guide - bank 1 (1). Refer to SECONDARY TIMING CHAIN GUIDE REMOVAL - RIGHT SIDE .

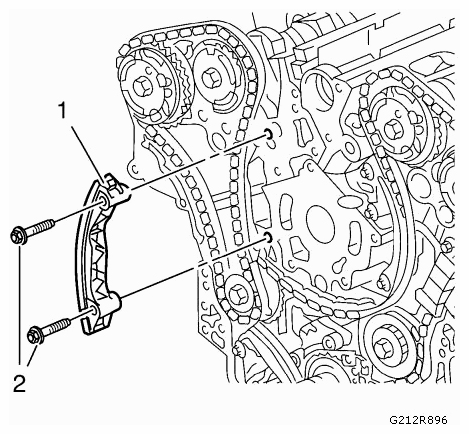

Fig 1: Identifying Secondary Timing Chain Guide - Bank 1 And Mounting Bolt
G09438406Courtesy of SAAB-SCANIA OF AMERICA, INC.
