Turbocharger Assembly

  1. Refer to FASTENER CAUTION .

    Install the 3 turbocharger pressure-regulator, solenoid-valve bolts (6) and tighten to 10 Nm (89 lb in)  .

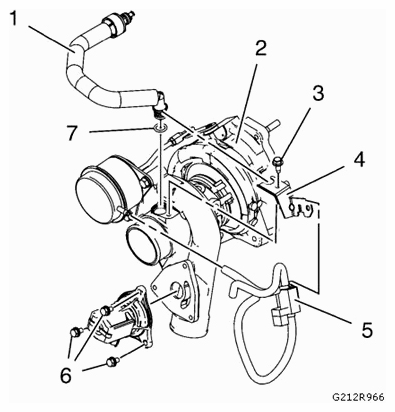

    Fig 1: Identifying Turbocharger Assembly Related Components
    G09438956Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the turbocharger wastegate regulator solenoid valve.
  3. Install the positive crankcase ventilation tube (1) from the turbocharger (2).
  4. Install the positive crankcase ventilation tube seal (7) from the turbocharger.
  5. Install the turbocharger wastegate actuator vacuum control solenoid valve (5).
  6. Install the 3 turbocharger wastegate regulator, vacuum control solenoid-valve bolts (3) and tighten to 10 Nm (89 lb in)  .
  7. Install the turbocharger wastegate actuator vacuum control solenoid valve bracket (4).
