Turbocharger Installation

  1. Install the turbocharger (3).

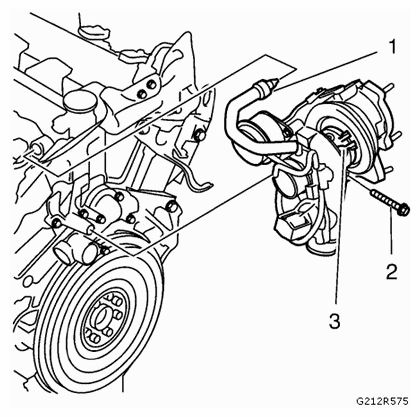

    Fig 1: Identifying Positive Crankcase Ventilation Tube, Turbocharger And Mounting Bolts
    G09439207Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Refer to FASTENER CAUTION .

    Install the turbocharger retaining bolts (2) and tighten to 65 Nm (48 lb ft)  .

  3. Install the positive crankcase ventilation tube (1) to the crankcase cover bank 2.
