Water Outlet Installation

  1. Install the NEW water outlet seals (2) and (3).

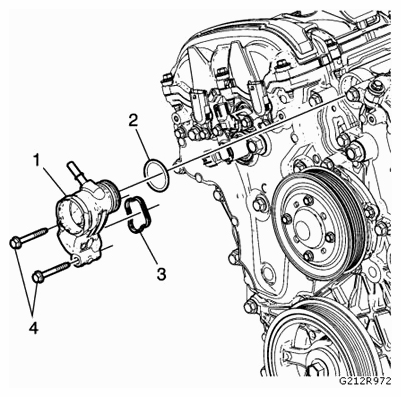

    Fig 1: Identifying Water Outlet, Seals And Mounting Bolts
    G09439251Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Install the water outlet (1).
  3. Install the water outlet bolts (4).
