Water Pump Installation

Special Tools

EN 46104  Water Pump Pulley Holding Tool

1. Ensure that the engine front cover and water pump are clear of old gasket material.

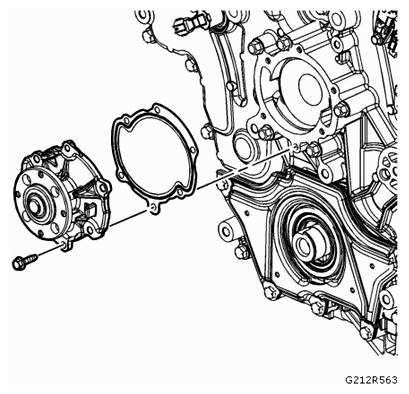

   Fig 1: Identifying Water Pump, Gasket And Mounting Bolt

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
2. Place a new water pump gasket on the water pump.
3. Place the water pump in position on the front cover.
4. Refer to FASTENER CAUTION .

   Install the water pump bolts and tighten to 10 Nm (89 lb in)  .

5. Install the water pump pulley.

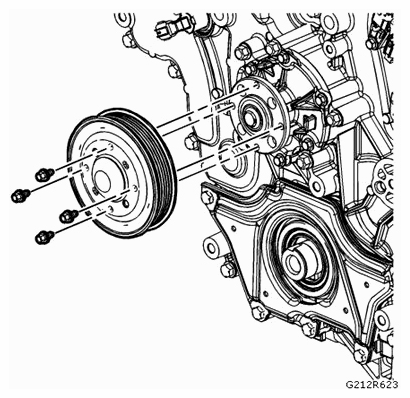

   Fig 2: Identifying Water Pump Pulley And Mounting Bolts

   Courtesy of SAAB-SCANIA OF AMERICA, INC.
6. Loosely install the water pump pulley bolts.
7. Install the EN 46104  tool (1) onto the water pump pulley and tighten the pulley bolts to 10 Nm (89 lb in)  .

.

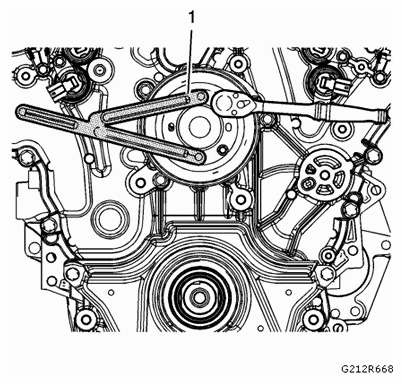

Fig 3: Installing Water Pump Pulley Holding Tool On Pulley
