Left Cylinder Head Exhaust Face (LF1)

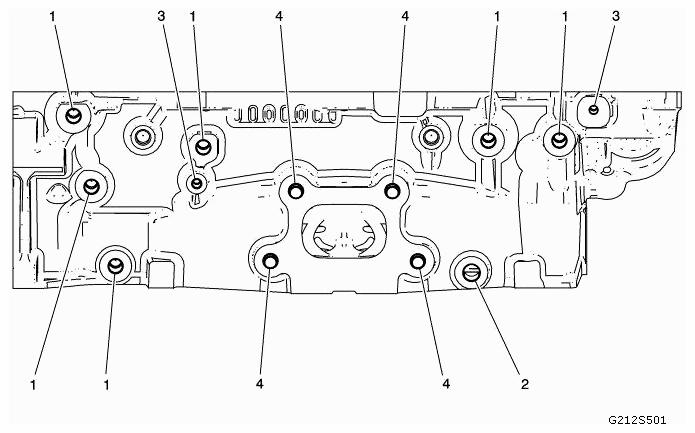

Fig 1: Left Cylinder Head Exhaust Face Components Location (LF1)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

THREAD REPAIR SPECIFICATIONS

Hole Location	Thread Size	Drill	Counterbore Tool	Stop Collar	Tap	Driver	Insert	Drill Depth (Maximum)
		J 42385-						MM	(IN)
1	M10 x 1.5	211	212	N/A	213	214	215	33.5	1.3189
2	M12 x 1.5	705	706	N/A	707	708	709	27.5	1.0827
3	M6 x 1.0	201	202	N/A	203	204	205	22.5	0.8858
4	M10 x 1.5	211	212	N/A	213	214	215	26.5	1.0433
