Engine Front Cover (LAU)

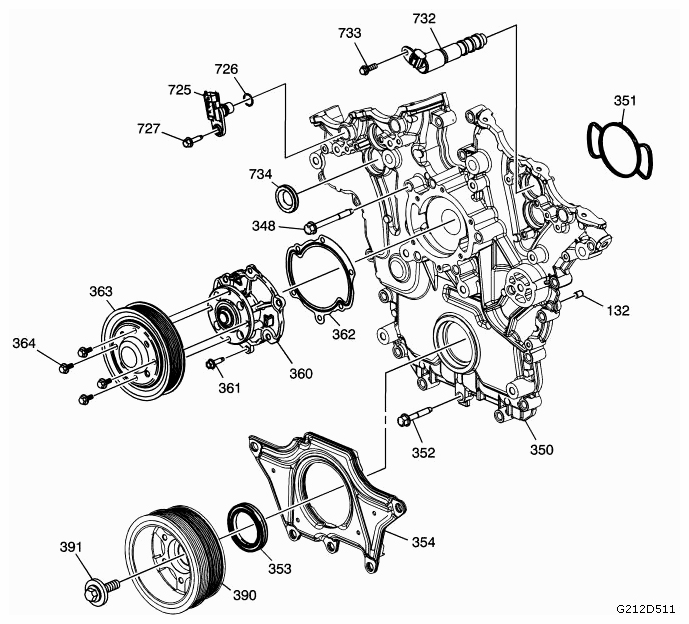

Fig 1: Disassembled View Of Engine Front Cover Assembly (LAU)
G09438337Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. (132) Engine Front Cover Locating Pin
  2. (348) Engine Front Cover Bolt - Long
  3. (350) Engine Front Cover Assembly
  4. (351) Engine Front Cover Gasket
  5. (352) Engine Front Cover Bolt
  6. (353) Engine Front Cover Seal
  7. (354) Engine Front Cover Deadener
  8. (360) Water Pump Assembly
  9. (361) Water Pump Bolt
  10. (362) Water Pump Gasket
  11. (363) Water Pump Pulley
  12. (364) Water Pump Pulley Bolt
  13. (390) Crankshaft Balancer
  14. (391) Crankshaft Balancer Bolt
  15. (725) Camshaft Position Sensor
  16. (726) Camshaft Position Sensor O-ring
  17. (727) Camshaft Position Sensor Bolt
  18. (732) Camshaft Position Actuator Solenoid Valve
  19. (733) Camshaft Position Actuator Solenoid Valve Bolt
  20. (734) Camshaft Position Actuator Solenoid Valve Seal
