Intake Manifold (LF1)

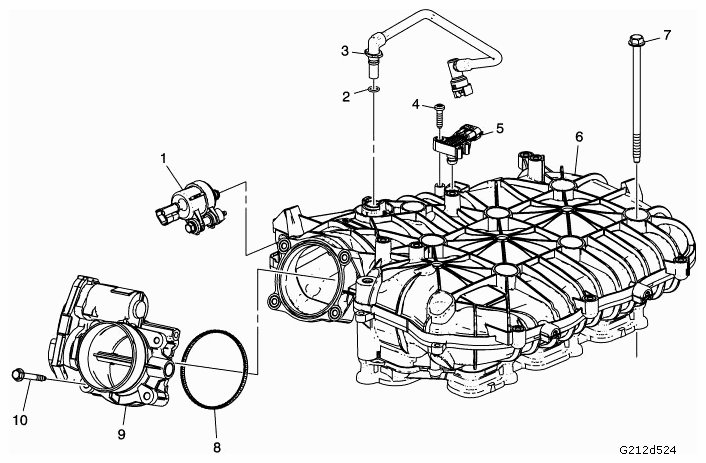

Fig 1: Disassembled View Of Intake Manifold Assembly (LF1)
G09438332Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. EVAP Solenoid
  2. PCV Tube O-ring Seal
  3. PCV Tube
  4. MAP Sensor Bolt
  5. MAP Sensor
  6. Upper Intake Manifold
  7. Upper Intake Manifold Bolt
  8. Throttle Body Gasket
  9. Throttle Body
  10. Throttle Body Bolt
