Engine Management And Fuel System, V6 (5 Of 5)
›
Wiring diagram
›
Controlled/Monitored Subsystem References
›
Notes
Controlled/Monitored Subsystem References: Notes

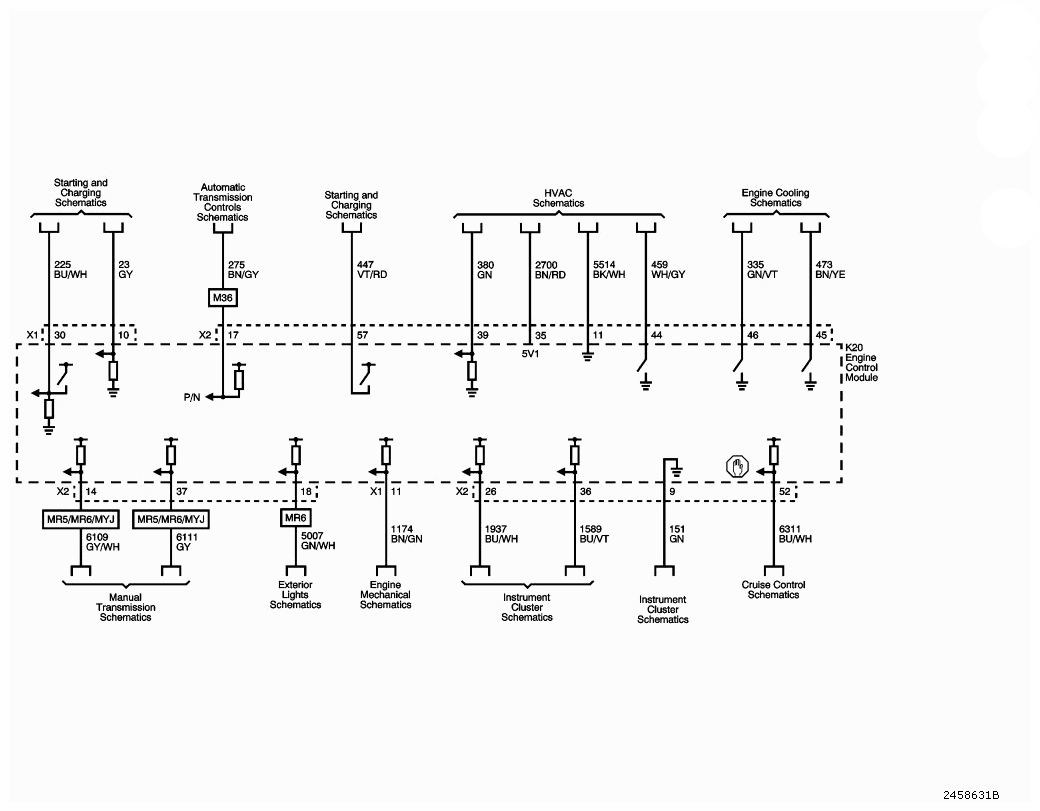

Fig 1: Controlled/Monitored Subsystem References - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
