Engine Management And Fuel System, V6 (5 Of 5)
›
Wiring diagram
›
Module Power, Ground, Serial Data, and MIL
›
Notes
Module Power, Ground, Serial Data, and MIL: Notes

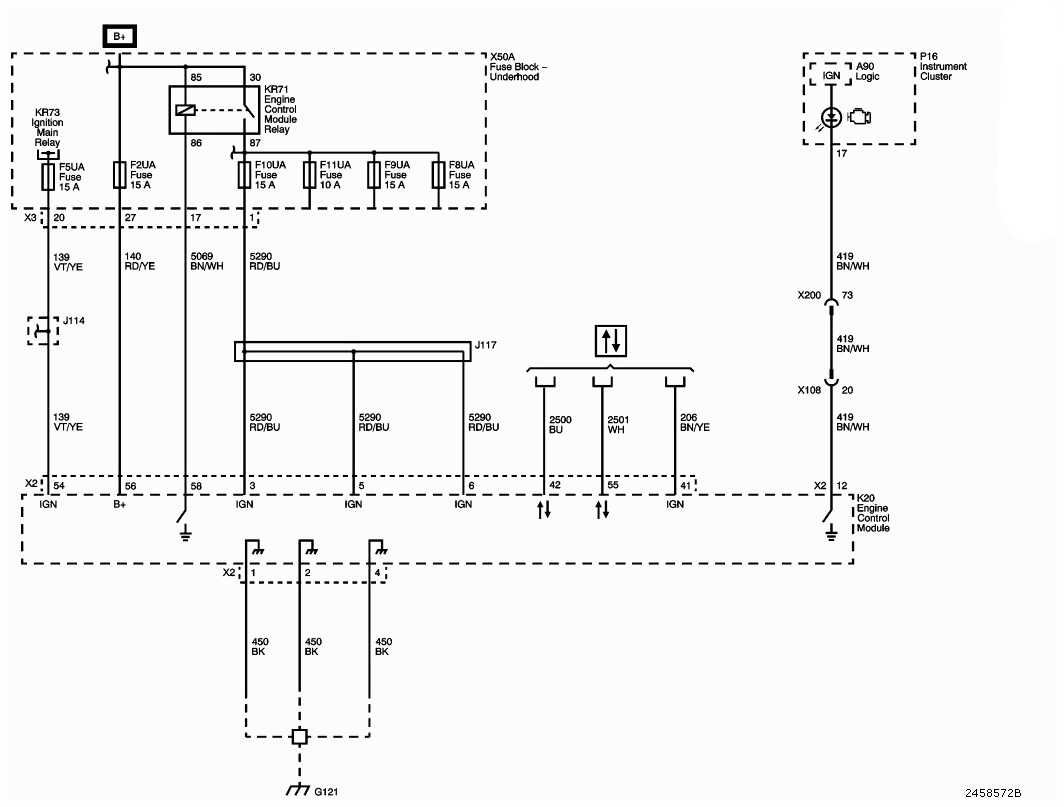

Fig 1: Module Power, Ground, Serial Data, And MIL - Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
