Engine Oil Pressure Switch Replacement

WARNING: This page is about a different car, the 2011 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

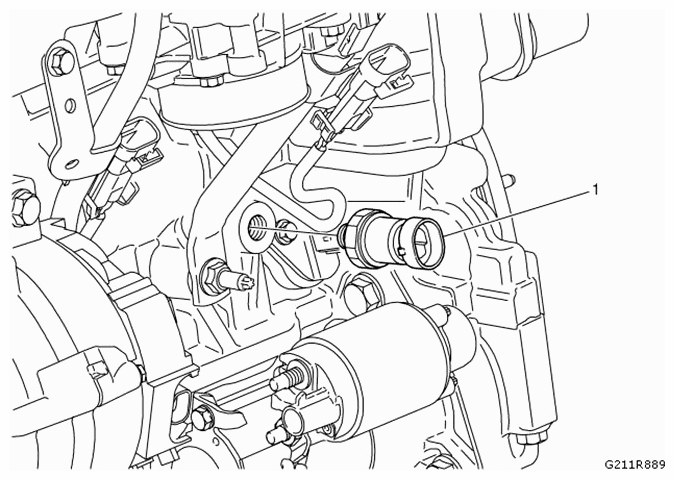

Fig 1: Identifying Engine Oil Pressure Switch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION . Remove the starter. Refer to STARTER REPLACEMENT (LHU/A20NFT) .
1	Oil Pressure Switch Procedure Disconnect the electrical connector. Use a new gasket.
