Oil Level Indicator Tube Replacement

WARNING: This page is about a different car, the 2011 Saab 9-5. However, it is still accessible from the selected car via links, so may be relevant.

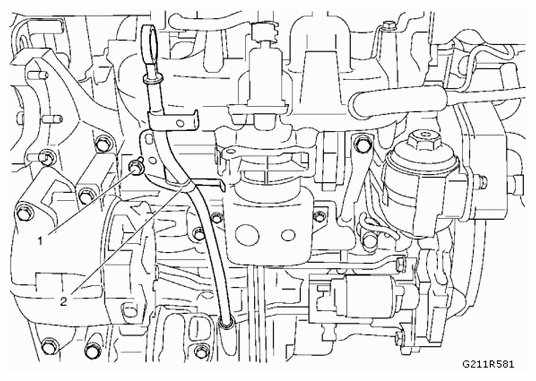

Fig 1: Identifying Oil Level Indicator Tube

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
1	Oil Level Indicator Tube Fastener Refer to FASTENER CAUTION . Procedure Release the engine electronic cable. Tighten 10 Nm (89 lb in)
2	Oil Level Indicator Tube
