Arrows and Symbols

This service manual uses various symbols in order to describe different service operations.

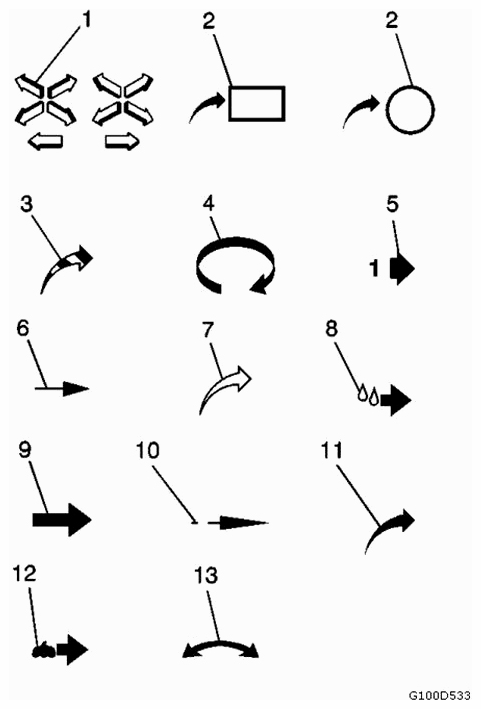

Fig 1: Arrows And Symbols Chart

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. Front of Vehicle
2. View Detail
3. Ambient Air Mixed with Another Gas or Indicate Temperature Change
4. Motion or Direction
5. View Angle
6. Dimension (1:2)
7. Ambient/Clean Air Flow or Cool Air Flow
8. Lubrication Point - Oil or Fluid
9. Task Related
10. Sectioning (1:3)
11. Gas Other Than Ambient Air or Hot Air Flow
12. Lubrication Point - Grease or Jelly
13. Multidirectional Arrow
