Power Steering Fluid Cooler Replacement

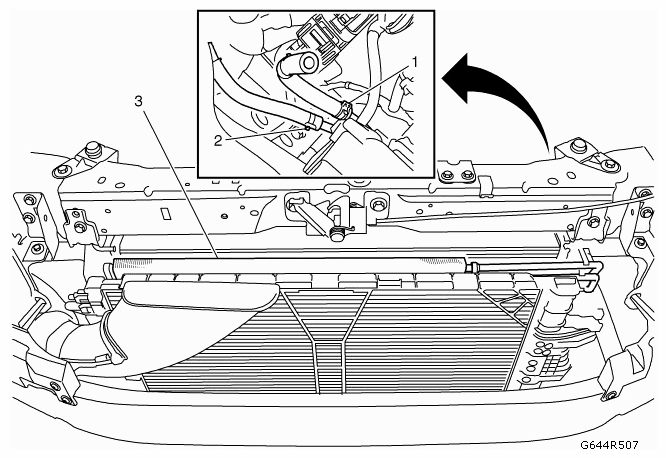

Fig 1: Identifying Power Steering Fluid Cooler And Inlet/Outlet Hose Clamp

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the front bumper fascia. Refer to FRONT BUMPER FASCIA REPLACEMENT . Remove the front bumper fascia center support bracket. Refer to FRONT BUMPER FASCIA CENTER SUPPORT BRACKET REPLACEMENT . Remove the power steering fluid reservoir. Refer to POWER STEERING FLUID RESERVOIR REPLACEMENT (L4)  or POWER STEERING FLUID RESERVOIR REPLACEMENT (V6) .
1	Power Steering Fluid Cooler Outlet Hose Clamp
2	Power Steering Fluid Cooler Inlet Hose Clamp
3	Power Steering Fluid Cooler Refer to USING PROPER POWER STEERING FLUID CAUTION . Procedure  Remove the power steering fluid cooler pipes from clips. Fill and bleed the power steering system. Refer to POWER STEERING SYSTEM BLEEDING . Clean any excess power steering fluid from the vehicle.
