Power Steering Pump Replacement (V6)

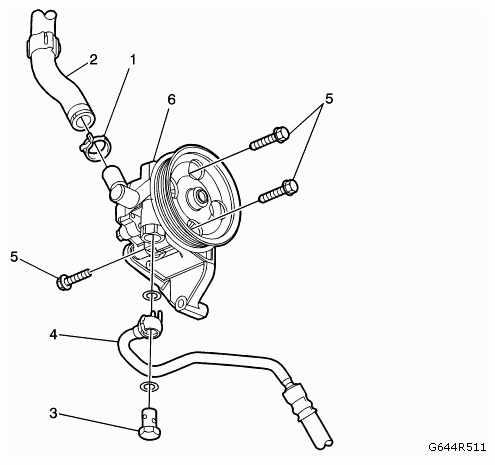

Fig 1: Identifying Power Steering Pump Related Components (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the right front tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION . Remove the drive belt. Refer to DRIVE BELT REPLACEMENT . Place drain pans under the vehicle. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
1	Clamp return line fluid reservoir power steering system
2	Return line fluid reservoir power steering system
	Banjo screw for power steering gear delivery line Refer to FASTENER CAUTION . Procedure  Install 2 NEW power steering gear delivery line fitting seals. Tighten  37.5 Nm (28 lb ft)
4	Delivery line for power-assisted steering gear
5	Power Steering Pump Bolt (Qty: 3) Procedure  Use special tool MKM-6600-1  Small Torque Wrench. Tighten  22 Nm (16 lb ft) Special Tools  MKM-6600-1  Small Torque Wrench For equivalent regional tools, refer to SPECIAL TOOLS .
6	Power Steering Pump Refer to USING PROPER POWER STEERING FLUID CAUTION . Procedure  Fill and bleed the power steering system. Refer to POWER STEERING SYSTEM BLEEDING . Clean any excess power steering fluid from the vehicle.
