Power Steering Return Hose Replacement (L4)

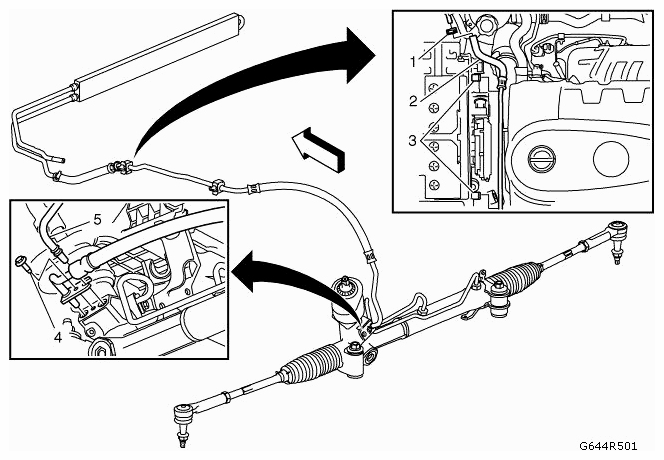

Fig 1: Identifying Power Steering Reservoir Inlet Hose, Clip, Clamp And Bracket Bolt (L4)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the battery tray. Refer to BATTERY TRAY REPLACEMENT . Place drain pans under the vehicle. Remove as much power steering fluid from the remote power steering fluid reservoir as possible.
1	Power Steering Reservoir Inlet Hose Clamp
2	Power Steering Reservoir Inlet Hose
3	Power Steering Gear Outlet Hose Clip (Qty: 2)
4	Power Steering Gear Outlet Hose Bracket Bolt Refer to FASTENER CAUTION . Tighten  9 Nm (80 lb in)
5	Power Steering Return Hose Refer to USING PROPER POWER STEERING FLUID CAUTION Procedure  Install NEW steering gear oil seals. Fill and bleed the power steering system. Refer to POWER STEERING SYSTEM BLEEDING . Clean any excess power steering fluid from the vehicle.
