Pump pulley power steering system, replace (L4)

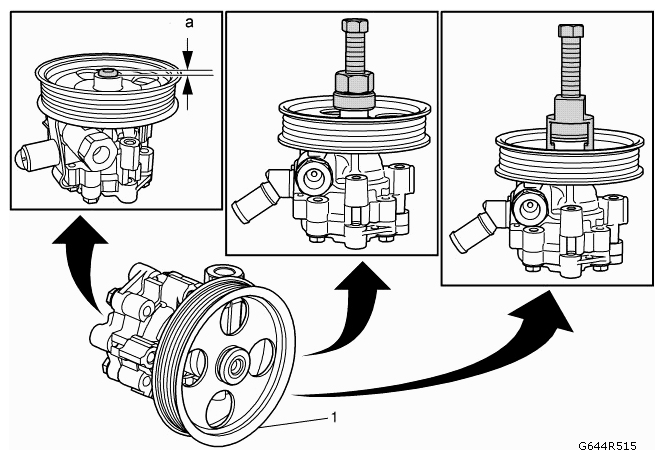

Fig 1: Identifying Power Steering Pump Pulley

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Pos	Component Name
Preliminary Procedure Remove the power steering pump. See POWER STEERING SYSTEM, PUMP, REPLACE (L4) .
1	Power Steering Pump Pulley Procedure Remove the pulley from the pump with CH-25034 Remover. Install the pulley with the CH-25033 Installer: Ensure that the pulley is flush with the spindle and aligned with the other pulley. Special Tools CH-25033 Pulley Installer CH-25034 Pulley Remover For equivalent regional tools, refer to SPECIAL TOOLS .

Pos

Component Name

Preliminary Procedure
Remove the power steering pump. See POWER STEERING SYSTEM, PUMP, REPLACE (L4) .

Power Steering Pump Pulley
Procedure

Remove the pulley from the pump with CH-25034 Remover.
Install the pulley with the CH-25033 Installer: Ensure that the pulley is flush with the spindle and aligned with the other pulley.

Special Tools

For equivalent regional tools, refer to SPECIAL TOOLS .
