Transmission Control Lever Knob Replacement

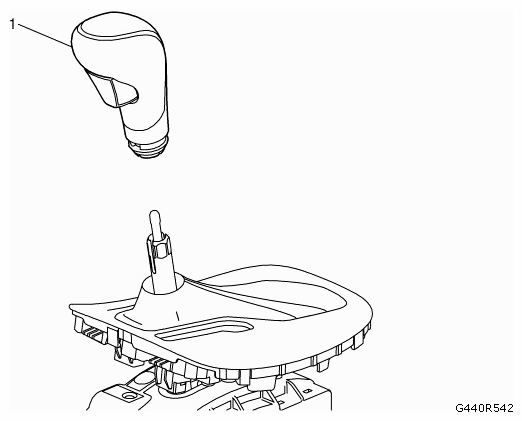

Fig 1: Identifying Transmission Control Lever Knob

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Callout	Component Name
Preliminary Procedure  Remove the lever boot from the control lever. Refer to TRANSMISSION CONTROL LEVER BOOT REPLACEMENT .
1	Transmission Control Lever Knob Procedure  Undo the clamp from the lever by pressing from the side. The catch is located on the left side of the lever and is not visible.
