Shift Lock Control
›
Notes
Shift Lock Control: Notes

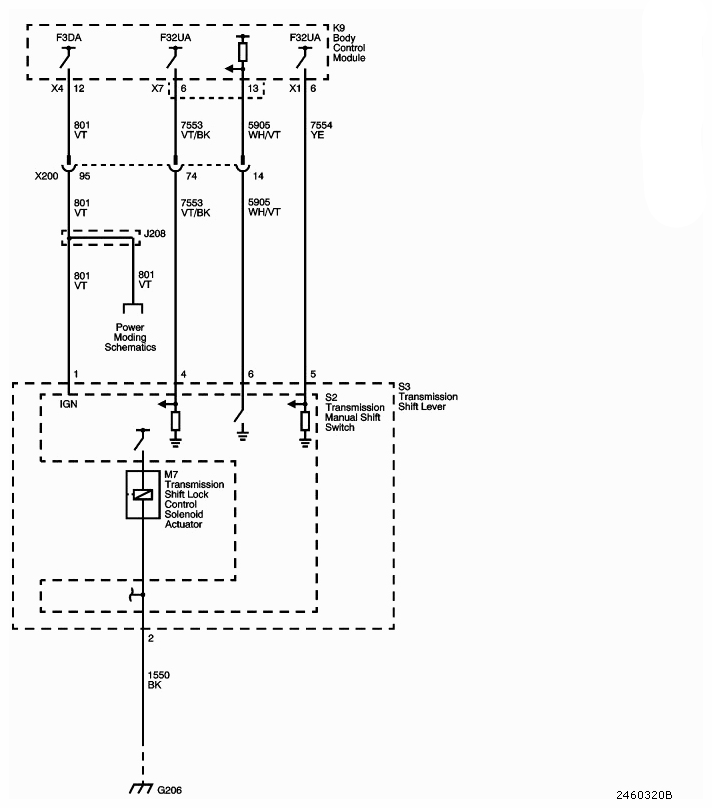

Fig 1: Shift Lock Control - Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
