Clutch Pedal Position Sensor Replacement: Assemble

Install the clutch pedal position sensor (1).

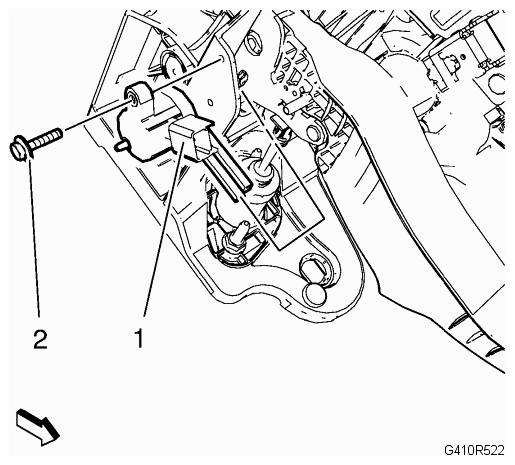

Fig 1: Identifying Clutch Pedal Position Sensor And Screw
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Install the clutch pedal position sensor screw (2).
Tightening torque 3 Nm (2 lbf ft)
Plug in the clutch pedal position sensor connector.
Program the clutch pedal position sensor; see CLUTCH PEDAL POSITION SENSOR PROGRAMMING .
