Clutch Pedal Position Sensor Replacement: Removal

  1. Detach the clutch pedal position sensor connector.

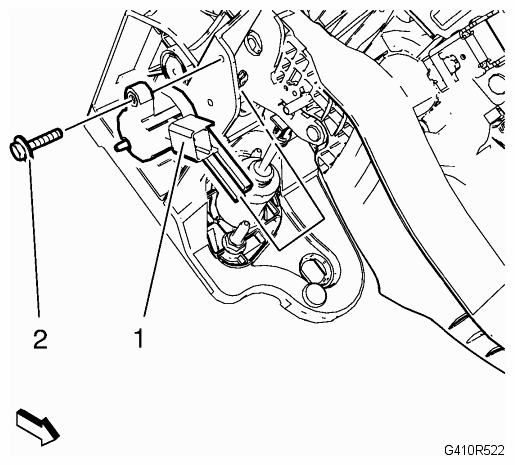

    Fig 1: Identifying Clutch Pedal Position Sensor And Screw
    G09439285Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the clutch pedal position sensor screw (2).
  3. Remove the clutch pedal position sensor (1).
