Connector H13-1
Connector H13-1
Location:
In the end of the LH front door

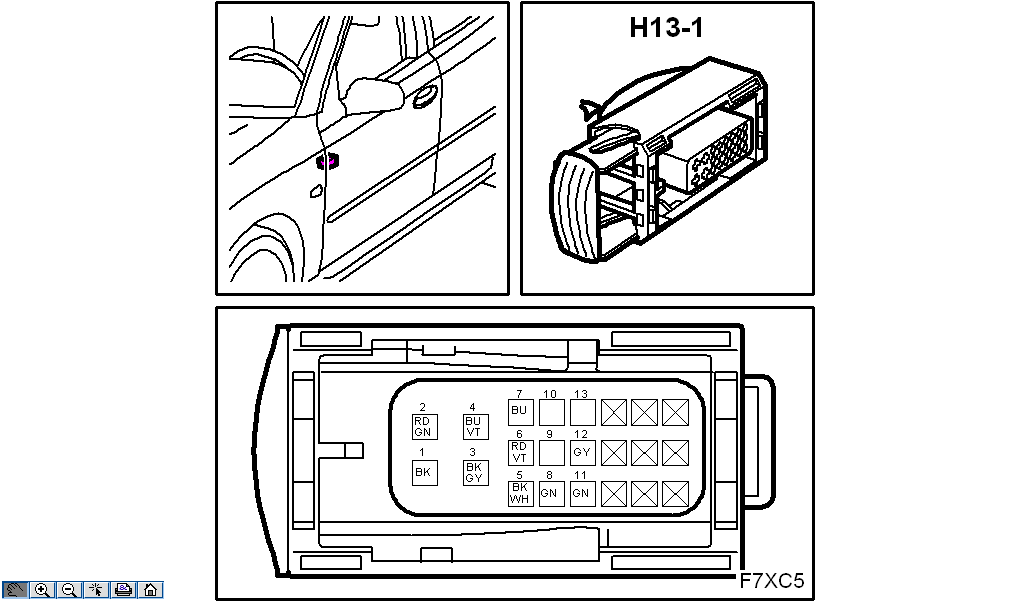

Fig 1: Identifying Connector H13-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
