Connector H13-2
Connector H13-2
Location:
In the end of the RH front door

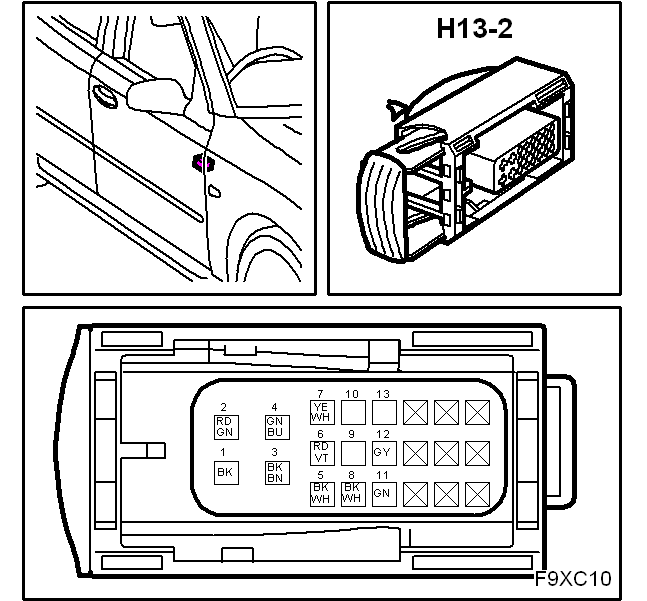

Fig 1: Identifying Connector H13-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
