Connector H16-2
Location:
In the end of the RH rear door

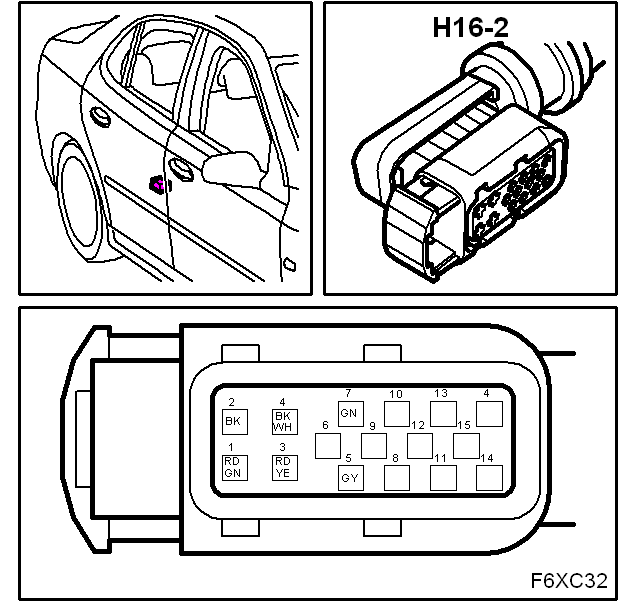

Fig 1: Identifying Connector H16-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.
