Component Locator
›
Connector H8-12
Connector H8-12
Location:
on the side under the right-hand D-pillar closest to the tailgate

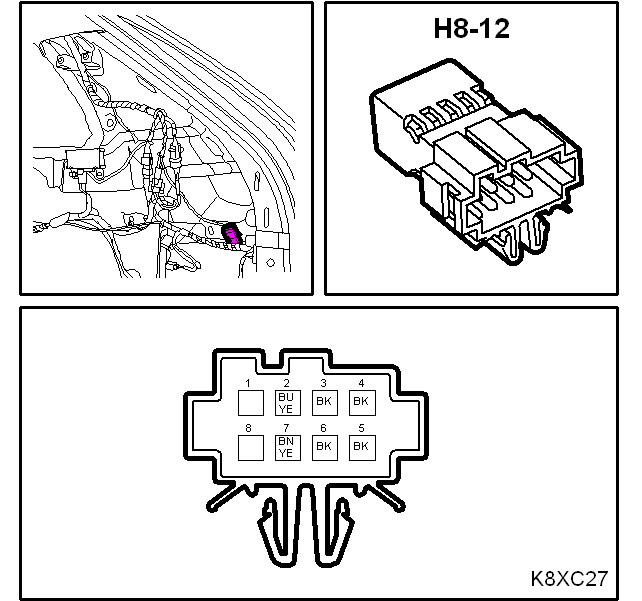

Fig 1: Identifying Connector H8-12
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
