Connector H8-6
Location:
black connector on the side panel between the REC and the wheel housing

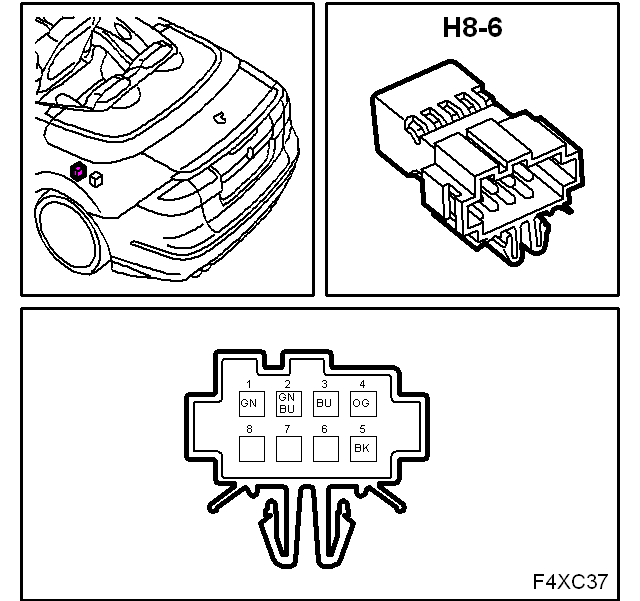

Fig 1: Identifying Connector H8-6
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
