Connector H8-7
Connector H8-7
Location:
grey connector on the side panel between the REC and the wheel housing

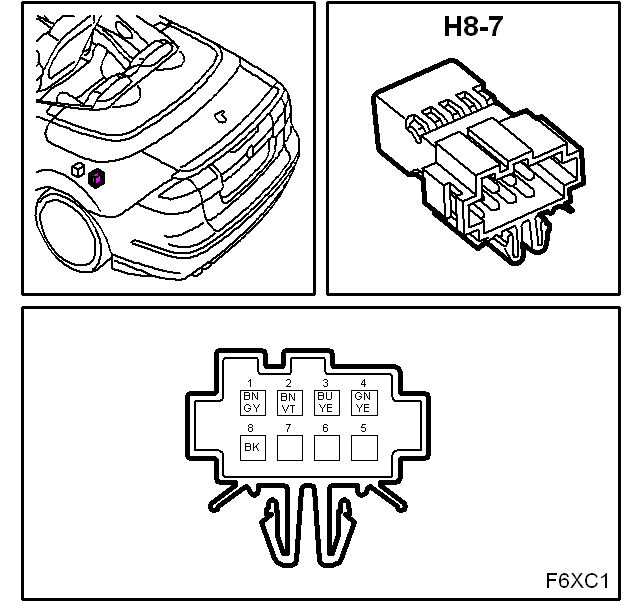

Fig 1: Identifying Connector H8-7
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
