To fit

Fit the control module.

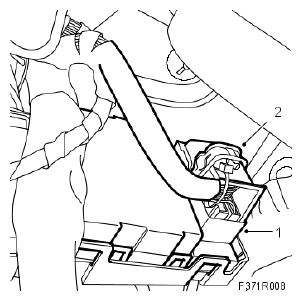

Fig 1: Illustrations For Steps 1-2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
Plug in the connector.
Fit the lower section of the dashboard. See SOUND INSULATION PANEL, PASSENGER .

Fig 2: Lower Section Of Dashboard
Courtesy of SAAB-SCANIA OF AMERICA, INC.
If the control module has been replaced: Carry out procedures after changing a control module .
