To remove

  1. Carry out procedures before removing a control module .
  2. Remove the lower section of the dashboard. See SOUND INSULATION PANEL, PASSENGER .
    Fig 1: Identifying Lower Section Of Dashboard
    G05056726Courtesy of SAAB-SCANIA OF AMERICA, INC.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.
    For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .
  3. Unplug the control module connector.

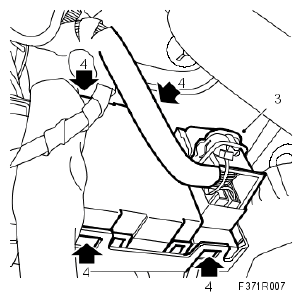

    Fig 2: Illustrations For Steps 3-4
    G05056727Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the control module by pressing in the 4 snap fasteners.
