To remove

  1. Perform PROCEDURES BEFORE DISMANTLING THE CONTROL MODULE .
  2. Remove the Front door trim. See DOOR TRIM, FRONT and DOOR TRIM, CV .
  3. Lay the side of the door on a clean and soft surface.
  4. When changing the driver door module:  Remove the cell block from under the door module.
  5. When changing the driver door module:  Remove door trim screw.

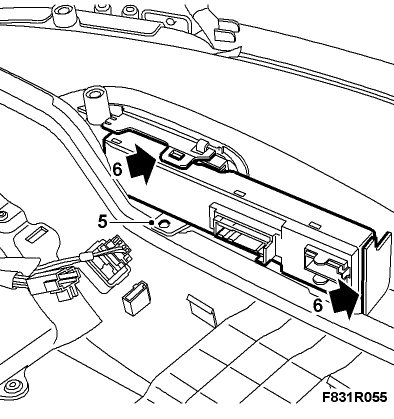

    Fig 1: Illustration For Step 5-6
    G05064183Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Remove the door module using a screwdriver. First undo the rear clip.

    Then undo the clips on the outer and inner sides of the door module. Pull the module carefully back/down.
