Connector H40-1
Connector H40-1
Location:
under the left seat

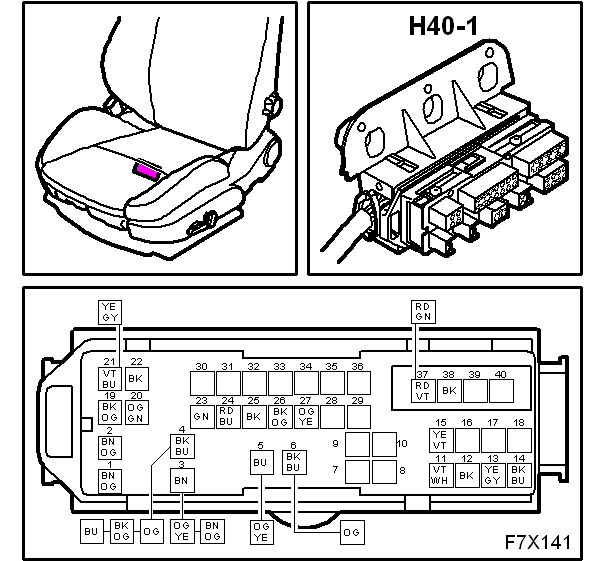

Fig 1: Identifying Connector H40-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
