To remove

Remove Seat upholstery/cushion front seat, CV.

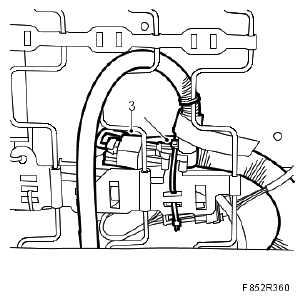

Carefully remove the silicone blister from the seat frame, use 82 93 474 REMOVAL TOOL .

Fig 1: Identifying Silicone Blister Clip
Courtesy of SAAB-SCANIA OF AMERICA, INC.

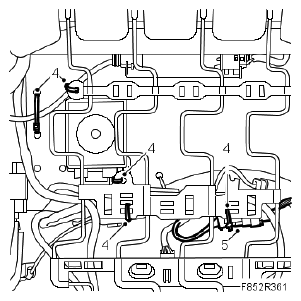

Lift up the blister, cut off the cable ties holding the sensor and detach the connector.

Fig 2: Identifying Cable Ties And Connector
Courtesy of SAAB-SCANIA OF AMERICA, INC.

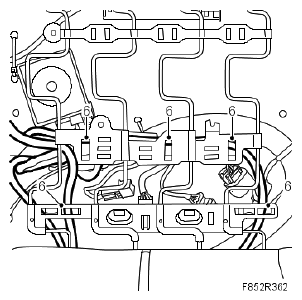

Cut off the cable ties securing the wiring harness and PPS control module to the spring mat.

Fig 3: Illustration For Step 4-5
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Detach the belt force sensor connector.

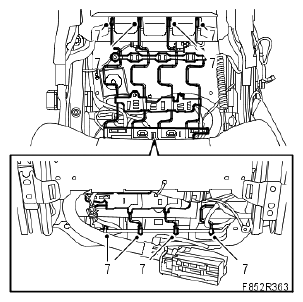

Unhook the wiring harness from the spring mat.

Fig 4: Identifying Wiring Harness On Spring Mat
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Remove the spring mat.

Fig 5: Identifying Spring Mat
Courtesy of SAAB-SCANIA OF AMERICA, INC.
