Grounding point G7, B284: Notes

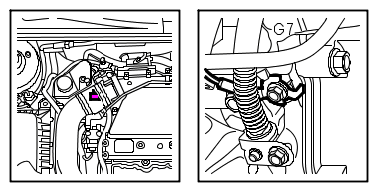

Fig 1: Identifying Grounding Point G7, B284

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  On rear cylinder bank toward belt circuit side

Grounding point G2 is connoted to the grounding point via crimp J312.
