Connector H7-1
Connector H7-1
Location:
on engine at rear corner of upper intake manifold on gearbox side.

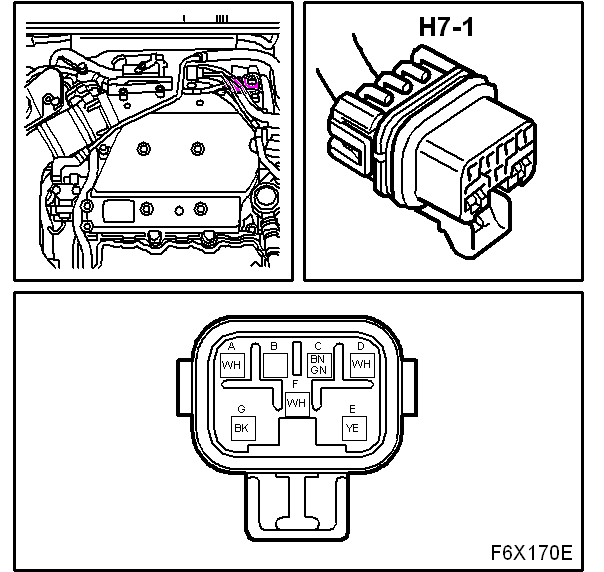

Fig 1: Identifying Connector H7-1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
