Fuel pump module (689)

Location:  in the fuel tank

Petrol, US/CA market

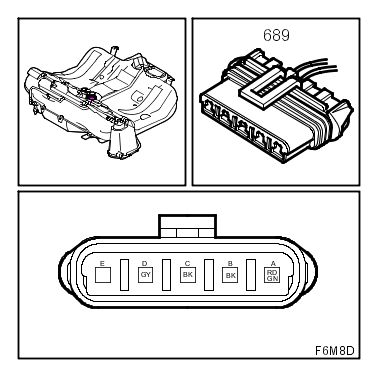

Fig 1: Identifying Fuel Pump Module Connector (689) Petrol, US/CA Market

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Petrol, other markets

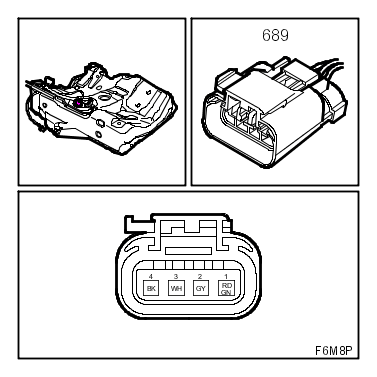

Fig 2: Identifying Fuel Pump Module Connector (689) Petrol, Other Market

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Diesel

Fig 3: Identifying Fuel Pump Module Connector (689) Diesel

Courtesy of SAAB-SCANIA OF AMERICA, INC.
