To remove

  1. Remove AIR FILTER .
  2. Remove the cover over the sensor (A).

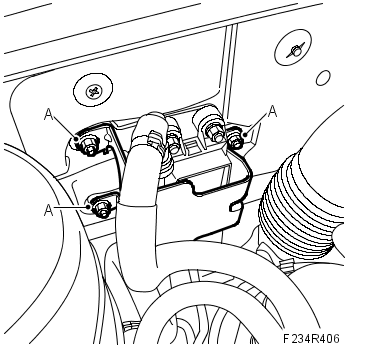

    3. Fig 1: Removing/Installing Cover Over Sensor (A)
    G00491355Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Detach the electrical connection (A).

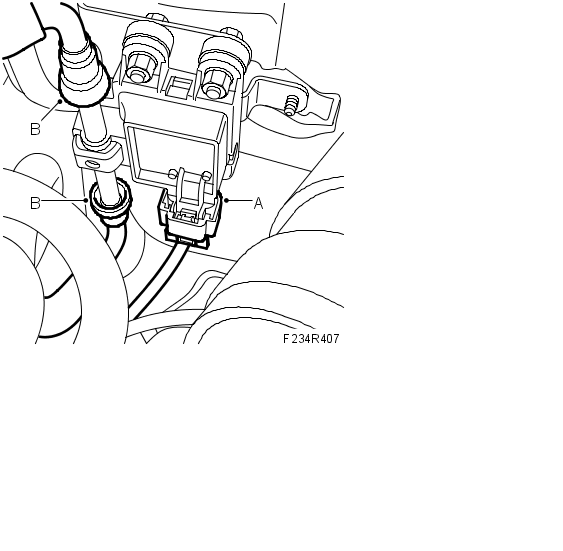

    4. Fig 2: Detaching/Attaching Electrical Connection (A)
    G00491356Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the fuel lines (B). Use 83 95 261 Fuel line tool.
  5. Remove the sensor from the bracket (A).
    6. Fig 3: Removing/Installing Sensor From Bracket (A)
    G00491357Courtesy of SAAB-SCANIA OF AMERICA, INC.
